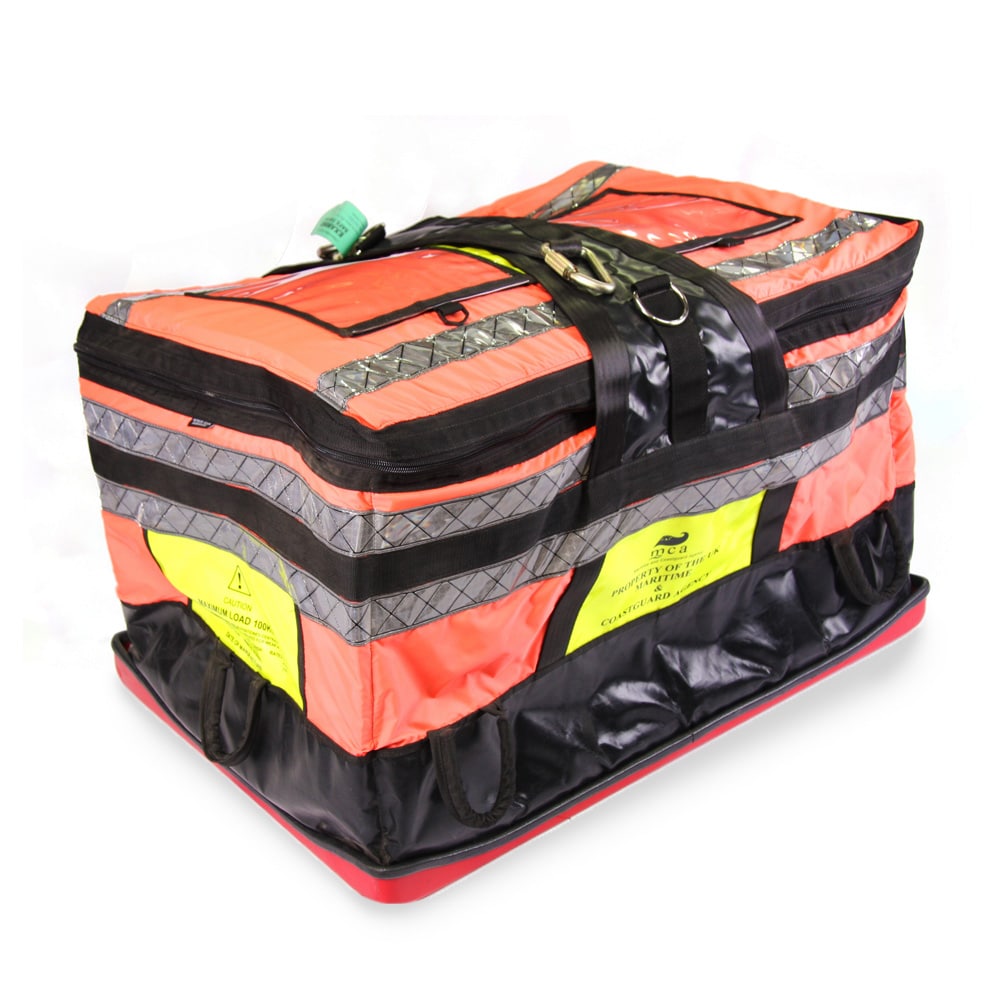

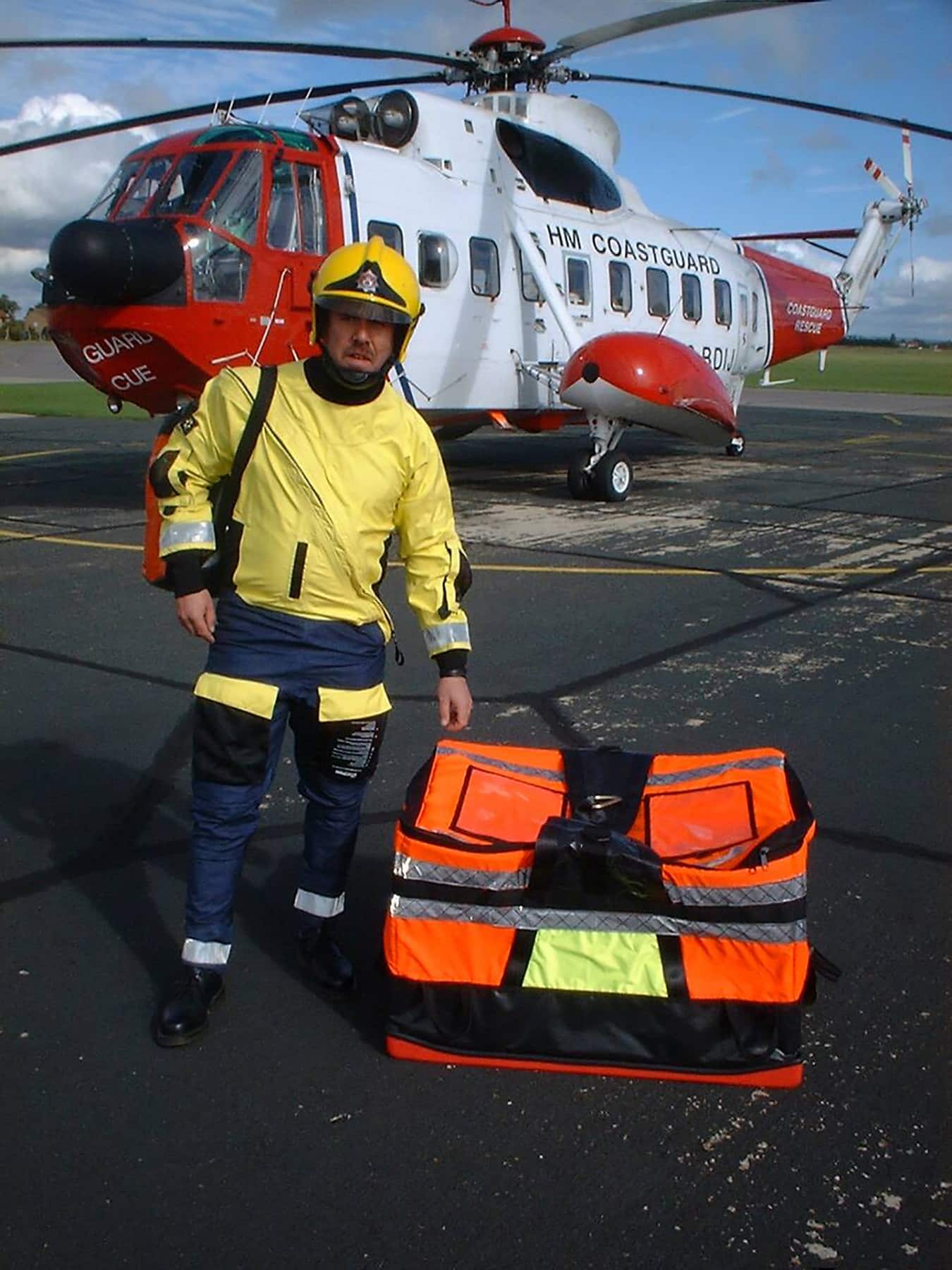

Helicopter Loading Bag

To transport firefighting equipment via helicopter and/or sea-going tug, to incidents off-shore in a compact and easily manageable bag.

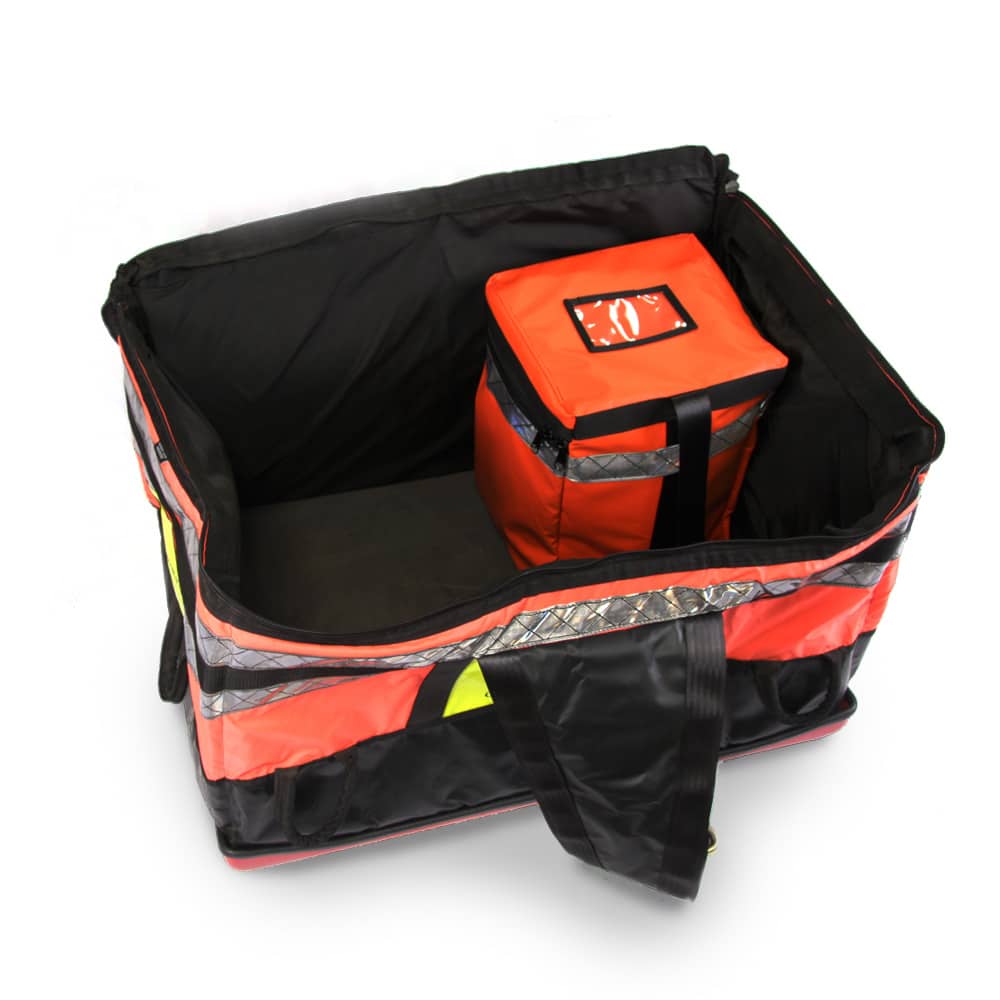

Please note that the smaller bag in one of the images is NOT included and is for demonstration purposes over. Helicopter Kit Bag is available to purchase separately.

NATO Stock Number 8465-991-561-438 (Standard)  or 8465-99-861-0809 (Small)

MATERIALS

• 10mm Plastozote Foam sandwich
• P200 inner lining
• PC350 Base
• Heavy Duty Glass Fibre tray
• 8mm Heavy duty zip
• 48mm Heavy duty webbing / 26 KN *
• DMM – Steel Karabiner.

DIMENSIONS – STANDARD

• Length – 915 mm
• Width – 635 mm
• Height – 635 mm
• SWL – 100Kg – LOLAR Certificate available upon request

DIMENSIONS – SMALL

• Length – 650 mm
• Width – 450 mm
• Height – 500 mm
• SWL – 60Kg – LOLAR Certificate available upon request

DMM Steel Karabiner secured to the webbing straps 550 mm above the top of the bag. Karabiner attached to a 3m x 50 mm webbing strap.

CONSTRUCTION
The base of the helicopter loading bag is constructed in two parts, an inner and outer. The outer base (bottom tray) is constructed with large radii corners to avoid damage to helicopter flooring with sharp angular comers. Size is 635 mm x 915 nominal 8 gauge manufactured from Heavy Duty Glass Fibre.
The inner part of the base is constructed of 6mm ply measuring 610 mm x 870mm. The bases are secured through the bottom of the bag and through the webbing straps by steel bolts with Nylock nuts.

CARRYING HANDLES
Six reinforced easy grab handles are secured around the lower half of the bag to assist in the manual transference of equipment.

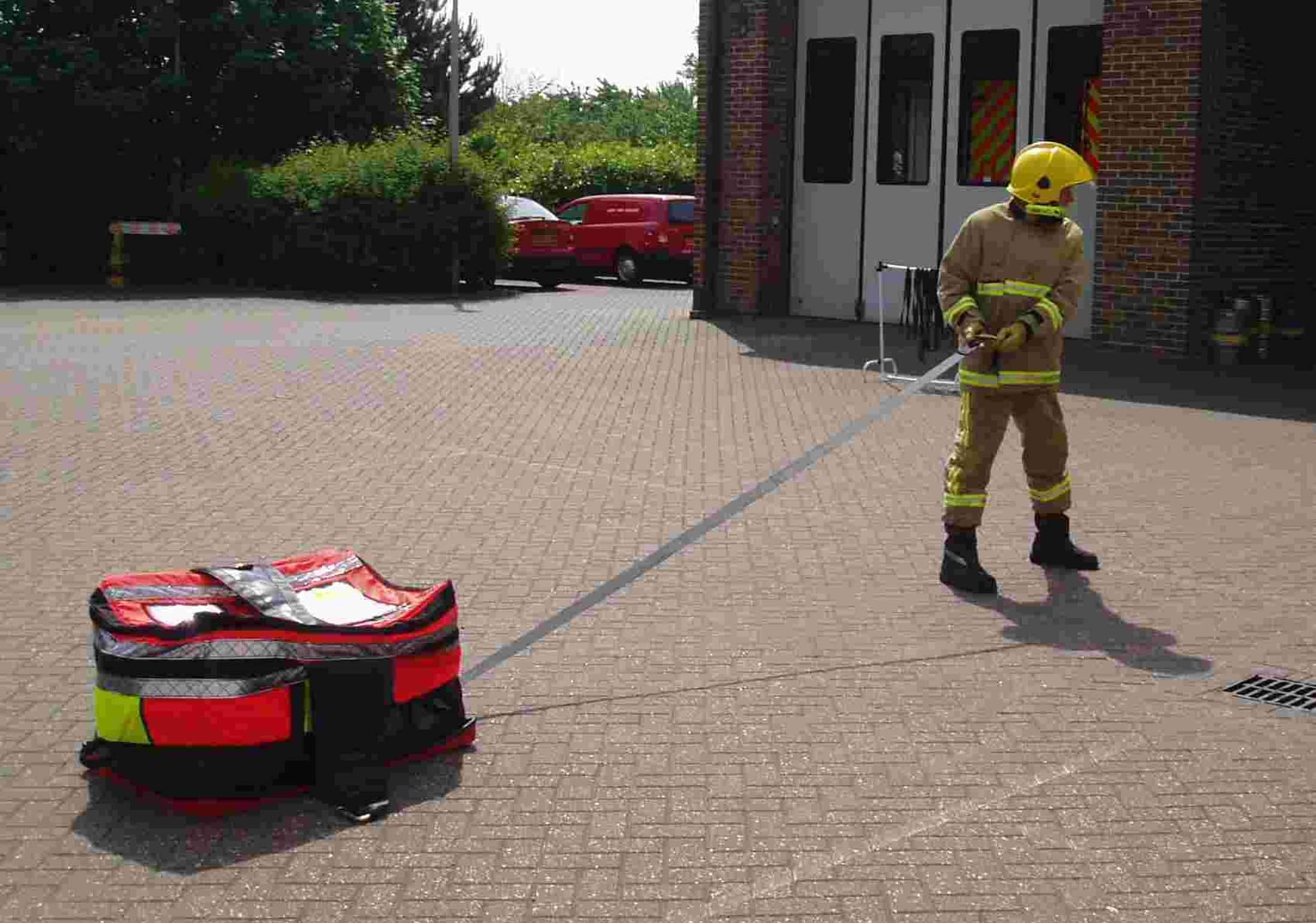

One 48 mm x 3 m webbing strap for securing or dragging purposes is secured at one end with leather fastenings and can be stored in a zipped pocket when not in use.

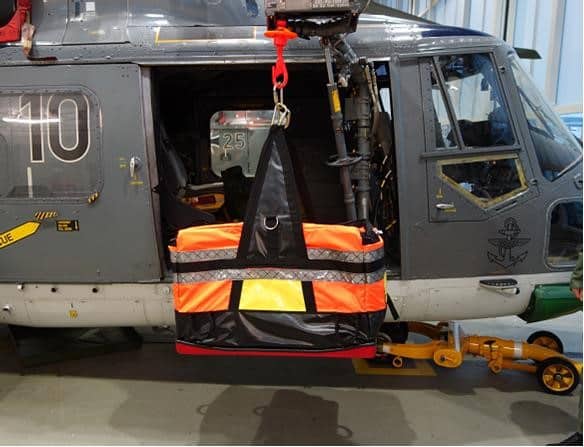

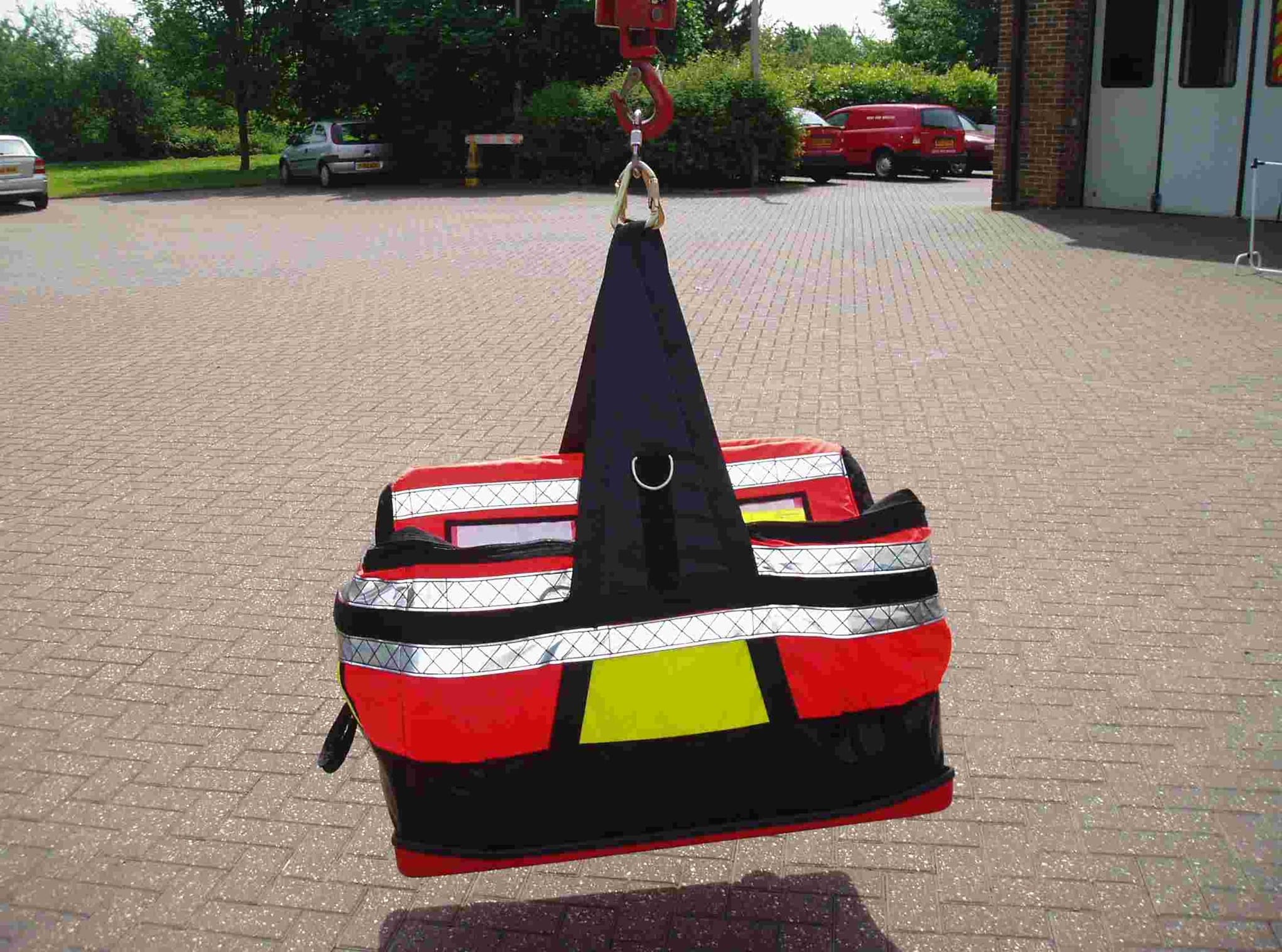

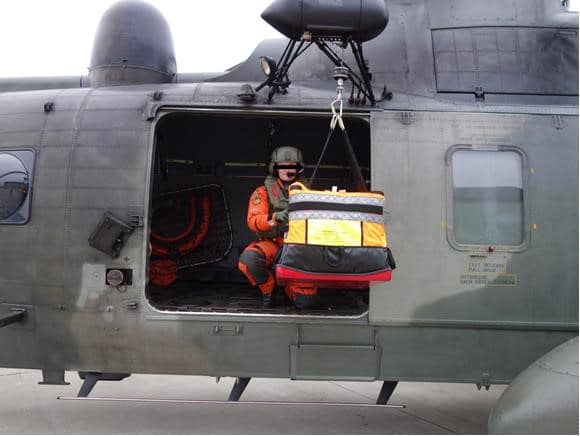

Two 48 mm heavy-duty webbing straps which extend 550 mm above the top of the bag excluding the karabiner for use in helicopter transference of equipment. Each strap is of double thickness for extra strength and continues underneath the bag where they are bolted through from the base for extra security.

Between each strap, reinforcement has been inserted to minimise the spin of the bag whilst undergoing transportation. Each strap carries a DMM Steel Karabiner.

DMM STEEL KARABINER

This karabiner’s wide gate opening and excellent wear resistance make it particularly suitable for clipping onto steel safety lines or attachment points. It is also of use in any situation where a large internal volume is required; however, as with all Karabiners it is only suitable for loading in two directions along the spine.
The Lock safe – The triple action of the innovative Lock safe mechanism significantly reduces the chance of accidental gate opening and is a major step forward in improving the safety of automatic locking Karabiners.

The Karabiner is a DMM Steel Karabiner (Gold) Super Strength, generally accepted throughout the World as being the strongest and most wear-resistant available. All “Gold Standard” Karabiners have exceptionally high strength due to their being manufactured from the very highest quality alloy steels and carefully “through” heat treated. These features make them ideally suited to applications where high strength (way above the minimums as laid down in International standards) is of paramount importance.

RUBBING BAND
A 200 mm rubbing band is stitched to the bottom of the bag manufactured from black PC350.

SEAMS
All seams are double-stitched.

LABEL POUCHES

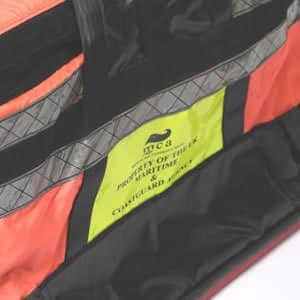

Two A4 clear label pouches are incorporated into the loading bag for easy insertion and removal of A4 size labels.

COLOUR
The overall colour of the bag is High Visibility Orange, and the rubbing band and webbing straps are black.

LETTERING

To be decided by the customer. The relevant Manual handling regulations symbol will be attached in a highly visible section of the bag.

NATO Stock Number NSN 991-56-14-38 (Standard) or 8465-99-861-0809 (Small)

Available worldwide through a network of Distributors. Find your local stockist using our map, or call 01490 413 282
